Container sizes

ISO container dimensions

These container dimensions refer to the standard ISO containers used by most shipping lines but it may vary. Please contact us so we help you determine what container size suites your needs the best. Please also note that these are the inner dimensions of the container.

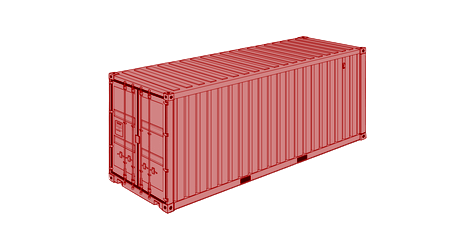

20' Dry

Length: 5.90 m
Width: 2.35 m
Height: 2.39 m

Door width: 2.34 m
Door height: 2.28 m
Max payload: 28.20 ton

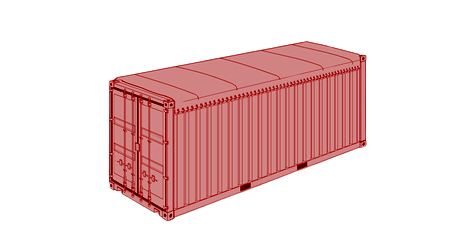

20' Open top

Length: 5.90 m
Width: 2.35 m
Height: 2.34 m

Door width: 2.34 m
Door height: 2.24 m
Max payload: 28.20 ton

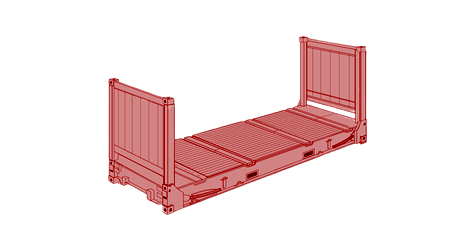

20' Flat rack

Length: 5.96 m
Width: 2.35 m
Height: 2.24 m

Max payload: 30.40 ton

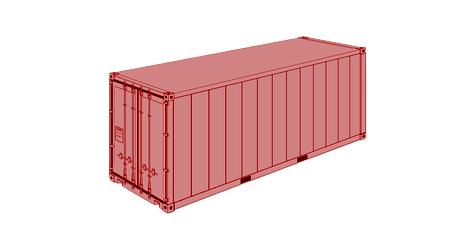

20' Reefer

Length: 5.45 m
Width: 2.29 m
Height: 2.15 m

Door width: 2.29 m
Door height: 2.24 m
Max payload: 27.70 ton

40' Dry

Length: 12.03 m
Width: 2.35 m
Height: 2.39 m

Door width: 2.34 m
Door height: 2.28 m
Max payload: 26.80 ton

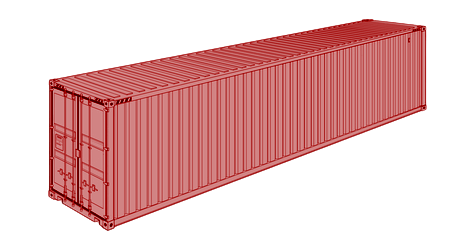

40' Dry high-cube

Length: 12.03 m
Width: 2.35 m
Height: 2.69 m

Door width: 2.34 m
Door height: 2.58 m
Max payload: 26.80 ton

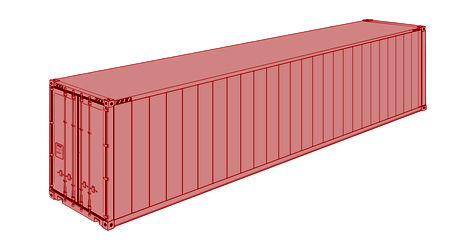

40' Reefer high-cube

Length: 11.58 m
Width: 2.29 m
Height: 2.40 m

Door width: 2.28 m
Door height: 2.54 m
Max payload: 28.35 ton

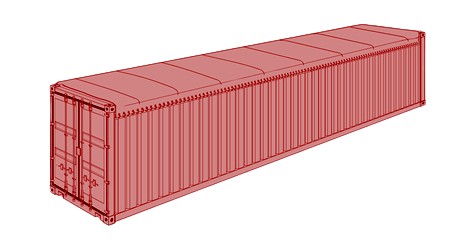

40' Open top

Length: 12.03 m
Width: 2.35 m
Height: 2.34 m

Door width: 2.34 m
Door height: 2.28 m
Max payload: 26.60 ton

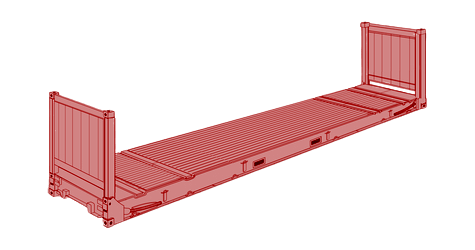

40' Flat rack

Length: 12.06 m
Width: 2.35 m
Height: 2.26 m

Max payload: 39.30 ton

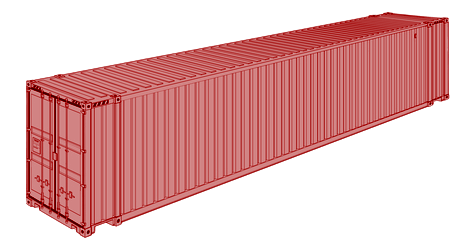

45' Dry high-cube

Length: 13.55 m
Width: 2.35 m
Height: 2.69 m

Door width: 2.34 m
Door height: 2.58 m
Max payload: 28.30 ton
